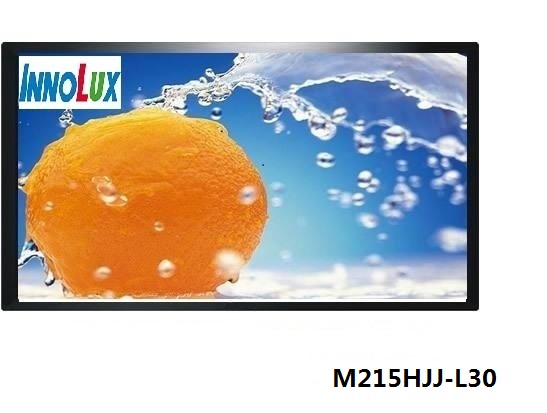

M215HJJ-L30 基本参数 | |
|---|---|
| 制造商(Productor) | 群创/Innolux |
| 产品型号(MODEL) | M215HJJ-L30 |
| 屏尺寸(Size) | |
| 分辨率(Resolution) | 1920×1080 |
| 分辨率简称(Resolution Name) | FHD |
| 显示比例(Display scale) | 16:9 |
| 像素排列(Pixel Arrangement) | RGB垂直条状 |
| 点距(Pixel Pitch) | 0.08265×0.24795 mm |
| 产品组成(Panel Composition) | 液晶屏, |
| 面板类型(Technology) | a-Si TFT-LCD |
| 主要用途(Applications) | 【电脑显示器】, |
| 显著特征(Panel Features) | 【广色域】, 【白光LED】, 【雾面】, |
M215HJJ-L30光电参数 | |
| 显示模式(Display mode) | MVA，常黑显示，透射式 |
| 亮度(Luminance) | 250 nits |
| 颜色(Color) | 16.7M |
| 色彩饱和度(Color Saturation) | 72%NTSC(CIE1931) |
| 最佳视角(The Best View) | 上下左右对称 |
| 白场色度(White Field Chroma) | X:0.313; Y:0.329 |
| 白场变动(White Field Dynamic) | 1.43 (9 points) |
| 扫描频率(Scanning Frequency) | 60Hz |
| 反转扫描(Reverse Scan) | No |
| 信号类型大类(The kind of Singnal) | LVDS |
| 接口类型(Interface) | LVDS |
| 信号接口定义(Singnal Interface Definition) | BLE-6PINS-CCAACC |
| 驱屏电压(Drive-screen voltage) | 5.0V |
| 面板输入电流(Input Current) | 1.13A |
| 信号接口类型(Kind of Singnal Interface) | 端子 |
| 信号接口品牌(Brand of Singnal Interface) | CviLux |
| 信号接口型号(Model of Singnal Interface) | WF13-422-3033 |
| 信号接口脚距(Pitch of Singnal Interface) | 1 mm |
| 信号接口脚数(Pin of Singnal Interface) | 6 pins |
M215HJJ-L30结构参数 | |
| 工作温度(Operation Temperature) | 0 °C ~ 50 °C |
| 存储温度(Storage Temperature) | -20°C ~ 60°C |
| 表面处理(Surface Technology) | 雾面 (Haze 25%)，Hard coating (3H) |
| 显示区域(Active Area) | 476.064×267.786 mm |
| 可视区域(Display Area) | 479.26×270.99 |
| 外形尺寸(Outline) | 495.60× 292.20×8.30 mm |
| 触摸屏(Touch Panel) | 无 |
| 灯管位置(Lamp Position) | 侧入式光源(左边) |
| 背光类型(Backlight) | WLED |
| 灯管数量(Lamp Number) | 4串 pcs |
| 灯管形状(Lamp Shape) | 4串 |
| 背光寿命(Life Time of Lamp) | 40K Hours |
| 单一灯管电压(Voltage of Lamp) | 37.2V |
| 单一灯管电流(Current of Lamp) | 85mA |
| 内置灯管驱动器(Driver of Backlight) | 无 |
| 背光接口类型(Kind of Backlight Interface) | 端子 |
| 背光接口品牌(Brand of Backlight Interface) | CviLux |
| 背光接口型号(Model of Backlight Interface) | CI1406M1HRF-NH |
| 背光接口数量(Quantity of Backlight Interface) | 1 pcs |
| 背光接口脚距(Pitch of Backlight Interface) | 1.0 mm mm |
| 背光接口定义(Backlight Interface Define ) | BLE-6PINS-CCAACC |
M215HJJ-L30包装及生产状态 | |
| 每箱数量(Quantity Per Box) | 12 pcs |
| 包装箱尺寸(Size of the Box) | 576×301×376 mm (长×宽×高) |
| 包装箱毛重(G.W. of the Box) | 25.62 Kg |
