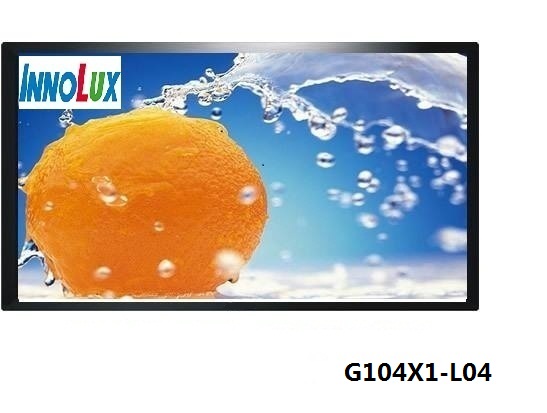

G104X1-L04 基本参数 | |
|---|---|
| 制造商(Productor) | 奇美/CMO |
| 产品型号(MODEL) | G104X1-L04 |
| 屏尺寸(Size) | |
| 分辨率(Resolution) | 1024×768 |
| 分辨率简称(Resolution Name) | XGA |
| 显示比例(Display scale) | 4:3 |
| 像素排列(Pixel Arrangement) | RGB垂直条状 |
| 点距(Pixel Pitch) | 0.0685×0.2055 mm |
| 产品组成(Panel Composition) | 液晶屏, |
| 面板类型(Technology) | a-Si TFT-LCD |
| 主要用途(Applications) | 【工业】, |
| 显著特征(Panel Features) | 【灰阶可选】, 【白光LED】, 【翻转显示】, 【自带LED驱动】, 【雾面】, 【广视角】, 【宽温】, |
G104X1-L04光电参数 | |
| 显示模式(Display mode) | SuperMVA，常黑显示，透射式 |
| 亮度(Luminance) | 500 nits |
| 对比度(Contrast Ratio) | 1000:1 |
| 颜色(Color) | 262K/16.2M |
| 色彩饱和度(Color Saturation) | 57%NTSC(CIE1931) |
| 响应时间(Response) | 14/11 (Tr/Td) ms |
| 可视角度(Viewing Angle) | 88/88/88/88(上/下/左/右) |
| 最佳视角(The Best View) | 上下左右对称 |
| 白场色度(White Field Chroma) | X:0.313; Y:0.329 |
| 白场变动(White Field Dynamic) | 1.25 (5 points) |
| 扫描频率(Scanning Frequency) | 60Hz |
| 反转扫描(Reverse Scan) | 翻转 (180°) |
| 信号类型大类(The kind of Singnal) | LVDS |
| 接口类型(Interface) | LVDS |
| 信号接口定义(Singnal Interface Definition) | LVDS-30P1C8B-085A |
| 驱屏电压(Drive-screen voltage) | 3.3V |
| 面板输入电流(Input Current) | 570mA |
| 信号接口类型(Kind of Singnal Interface) | 端子 |
| 信号接口品牌(Brand of Singnal Interface) | ACES |
| 信号接口型号(Model of Singnal Interface) | FI-XB30SRL-HF11 |
| 信号接口脚距(Pitch of Singnal Interface) | 1 mm |
| 信号接口数量(Quantity of Singnal Interface) | 1 pcs |
| 信号接口脚数(Pin of Singnal Interface) | 10 pins |
G104X1-L04结构参数 | |
| 工作温度(Operation Temperature) | -30 °C ~ 70 °C |
| 存储温度(Storage Temperature) | -30°C ~ 80°C |
| 表面处理(Surface Technology) | 雾面 |
| 显示区域(Active Area) | 210.432×157.824 mm |
| 可视区域(Display Area) | 215.4×161.8 |
| 外形尺寸(Outline) | 225.50× 176.30×7.96 mm |
| 触摸屏(Touch Panel) | 无 |
| 灯管位置(Lamp Position) | 侧入式光源 |
| 背光类型(Backlight) | WLED |
| 背光寿命(Life Time of Lamp) | 50K Hours |
| 内置灯管驱动器(Driver of Backlight) | 含LED驱动模块 |
| 背光接口类型(Kind of Backlight Interface) | 端子 |
| 背光接口品牌(Brand of Backlight Interface) | ACES |
| 背光接口型号(Model of Backlight Interface) | 91208-01001 |
| 背光接口数量(Quantity of Backlight Interface) | 1 pcs |
| 背光接口脚距(Pitch of Backlight Interface) | 1.0 mm mm |
| 背光接口定义(Backlight Interface Define ) | LVDS-30P1C8B-085A |
G104X1-L04包装及生产状态 | |
| 每箱数量(Quantity Per Box) | 18 pcs |
| 包装箱尺寸(Size of the Box) | 465×362×314 mm (长×宽×高) |
| 包装箱毛重(G.W. of the Box) | 11.23 Kg |
| 开始量产时间(Date Begin Producing) | 2010,Q1 |
