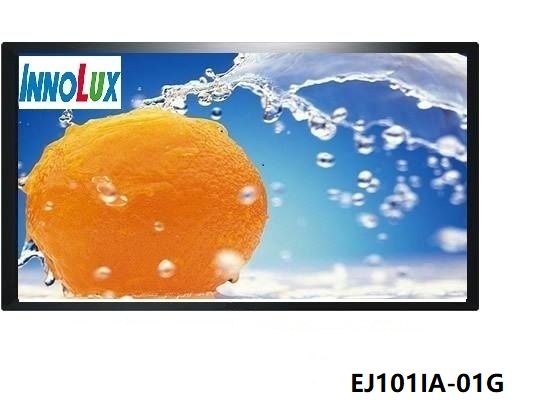

EJ101IA-01G 基本参数 | |
|---|---|
| 制造商(Productor) | 奇美群创/CMI |
| 产品型号(MODEL) | EJ101IA-01G |
| 屏尺寸(Size) | |
| 分辨率(Resolution) | 1280×800 |
| 分辨率简称(Resolution Name) | WXGA |
| 显示比例(Display scale) | 16:10 |
| 像素排列(Pixel Arrangement) | RGB垂直条状 |
| 点距(Pixel Pitch) | 0.0565×0.1695 mm |
| 产品组成(Panel Composition) | 液晶屏, |
| 面板类型(Technology) | a-Si TFT-LCD |
| 主要用途(Applications) | 【平板电脑】, |
| 显著特征(Panel Features) | 【广视角】, 【白光LED】, |
EJ101IA-01G光电参数 | |
| 显示模式(Display mode) | IPS，常黑显示，透射式 |
| 亮度(Luminance) | 350 nits |
| 对比度(Contrast Ratio) | 800:1 |
| 颜色(Color) | 16.7M |
| 色彩饱和度(Color Saturation) | 50%NTSC(CIE1931) |
| 响应时间(Response) | 10/15 (Tr/Td) ms |
| 可视角度(Viewing Angle) | 85/85/85/85(上/下/左/右) |
| 最佳视角(The Best View) | 上下左右对称 |
| 白场色度(White Field Chroma) | X:0.310; Y:0.330 |
| 白场变动(White Field Dynamic) | 1.25 (13 points) |
| 扫描频率(Scanning Frequency) | 60Hz |
| 反转扫描(Reverse Scan) | No |
| 信号类型大类(The kind of Singnal) | LVDS |
| 接口类型(Interface) | LVDS |
| 信号接口定义(Singnal Interface Definition) | LVDS-40P1C8B-050D |
| 驱屏电压(Drive-screen voltage) | 2.5/8.2/22.0/-7.0V (VDD/AVDD/AVDD/VGL) |
| 面板输入电流(Input Current) | 95/45/0.71/0.71mA (IDD/AIDD/IGH/IGL) |
| 信号接口类型(Kind of Singnal Interface) | 包含在屏信号接口中 |
| 信号接口品牌(Brand of Singnal Interface) | Vigorconn |
| 信号接口型号(Model of Singnal Interface) | F62240-H1210B |
| 信号接口脚距(Pitch of Singnal Interface) | 0.5 mm |
| 信号接口脚数(Pin of Singnal Interface) | 40 pins |
EJ101IA-01G结构参数 | |
| 工作温度(Operation Temperature) | -15 °C ~ 50 °C |
| 存储温度(Storage Temperature) | -20°C ~ 60°C |
| 表面处理(Surface Technology) | Hard coating |
| 显示区域(Active Area) | 216.96×135.60 mm |
| 外形尺寸(Outline) | 229.46× 149.10×2.50 mm |
| 触摸屏(Touch Panel) | 无 |
| 灯管位置(Lamp Position) | 侧入式光源 |
| 背光类型(Backlight) | WLED |
| 灯管数量(Lamp Number) | 3S10P pcs |
| 灯管形状(Lamp Shape) | 阵列 |
| 背光寿命(Life Time of Lamp) | 15K Hours |
| 单一灯管电压(Voltage of Lamp) | 8.8V |
| 单一灯管电流(Current of Lamp) | 200mA |
| 内置灯管驱动器(Driver of Backlight) | 无 |
| 背光接口类型(Kind of Backlight Interface) | 包含在屏信号接口中 |
| 背光接口品牌(Brand of Backlight Interface) | Vigorconn |
| 背光接口型号(Model of Backlight Interface) | F62240-H1210B |
| 背光接口数量(Quantity of Backlight Interface) | 1 pcs |
| 背光接口脚距(Pitch of Backlight Interface) | 0.5 mm mm |
| 背光接口定义(Backlight Interface Define ) | LVDS-40P1C8B-050D |
EJ101IA-01G包装及生产状态 | |
| 每箱数量(Quantity Per Box) | 40 pcs |
| 包装箱尺寸(Size of the Box) | 530×355×255 mm (长×宽×高) |
| 包装箱毛重(G.W. of the Box) | 11.7 Kg |
